CHEVY SUBURBAN TRANSFER
CASE MOTOR
Suburban transfer case switch actuator 4x4
encoder motor
|

 |
1420009

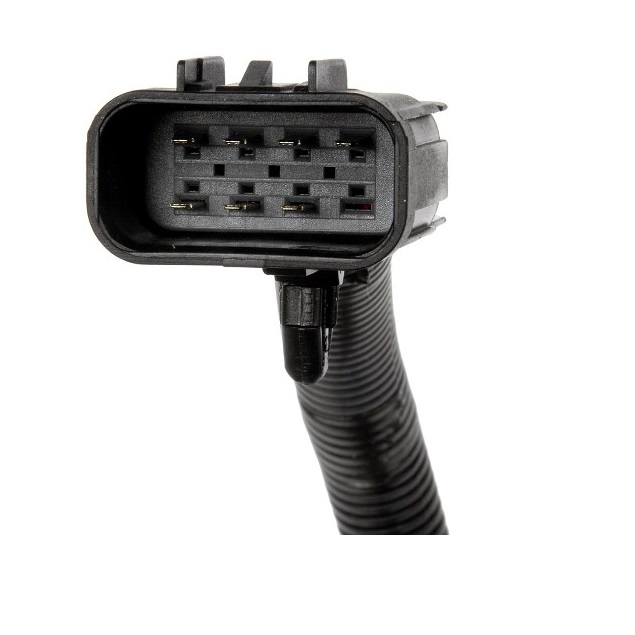

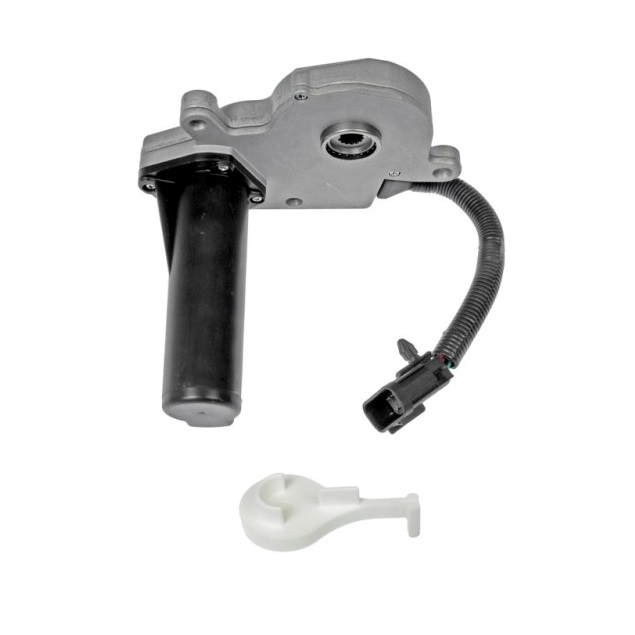

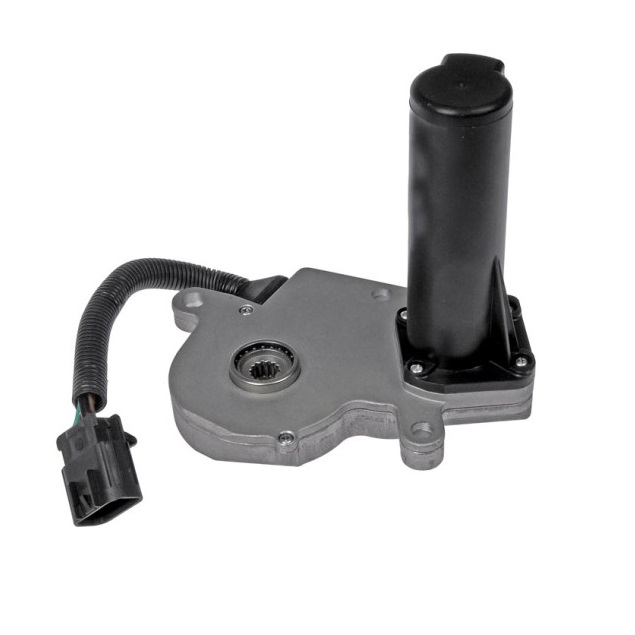

2003-2007 Suburban Transfer Case Shift Motor Actuator NP8
269.95
The Electric
Actuator/Motor Is Used To Engage Transfer Case In And Out Of Four Wheel
Drive On Suburban Equipped With Electric 4x4
- RPO "NP8" (white tag with option
codes in glove box) indicates auto electronic shift
- Automatic Electronic Shift (4 Wheel High, Low And Auto)
- 1 Oval 7 Pin Plug
- Direct Bolt On And Plug In
- Replaces Dealer Number 19125640 , 19125571 , 88962314
- All New Components, Not Refurbished
- Factory Tested
- Fits 2003, 2004, 2005, 2006, 2007 Chevrolet
Suburban 1500 and 2500
- Fits New Venture Gear 236, 246 Transfer Case Option Code NP8 (will not
fit NR4)
- Replacement Tahoe Transfer Case Actuator Built To OEM
Specifications
- Also Called Encoder Motor Transfer Case Shift Motor
- 600-910
|
 |
1240072
2003-2006 Chevy Suburban 4 Wheel Drive Switch "NP8" 69.95
- Dash Mounted 4 Button (4HI, 4LO, 2HI, Auto) 4x4 Switch
- Suburban With Auto 4WD Only (RPO Code "NP8")
- Gray With White Print
- Direct Bolt On And Plug In
- Fits 2003, 04, 05, 2006 Chevrolet Suburban 1500 And 2500 With NP8
- Replaces Dealer Number 15136039, 19259313
|
  |

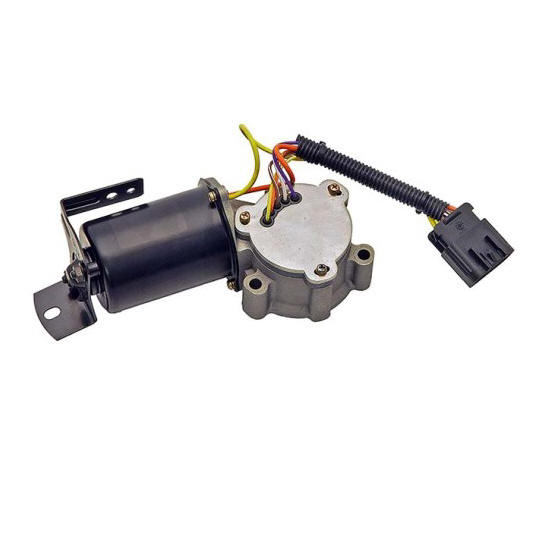

1420007

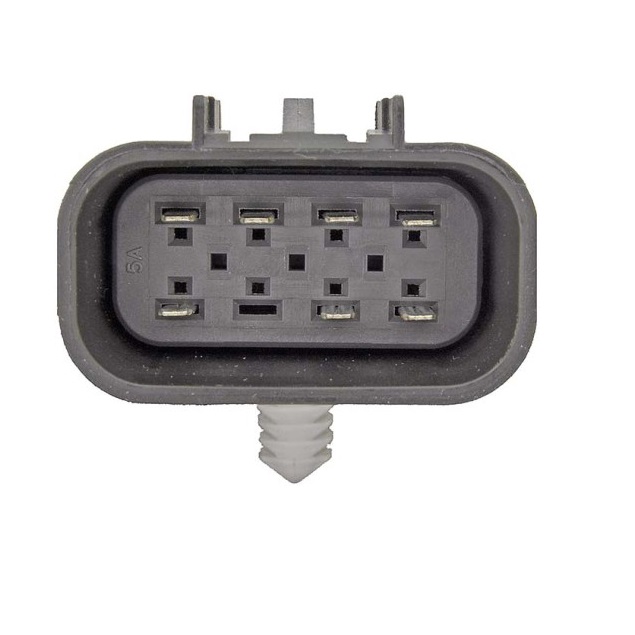

2003-2005 Suburban Transfer Case Shift Motor Actuator NR4
174.95
The Electric
Actuator/Motor Is Used To Engage Transfer Case In And Out Of Four Wheel
Drive On Suburban 1500 Equipped With Electric 4x4
- RPO "NR4" (white tag with option
codes in glove box) indicates auto electronic shift
- Automatic Electronic Shift (4 Wheel High, Low And Auto)
- 1 Rectangular 7 Pin Plug
- Direct Bolt On And Plug In
- Replaces Dealer Number 19168728 , 88984528 , 89059688
- All New Components, Not Refurbished
- Factory Tested
- Fits 2003, 2004, 2005 Chevrolet
Suburban 1500
- Fits Borg Warner 4484 Transfer Case Option Code NR4 (will not
fit code NP8)
- Also Called Encoder Motor
- 600-908
|
 |

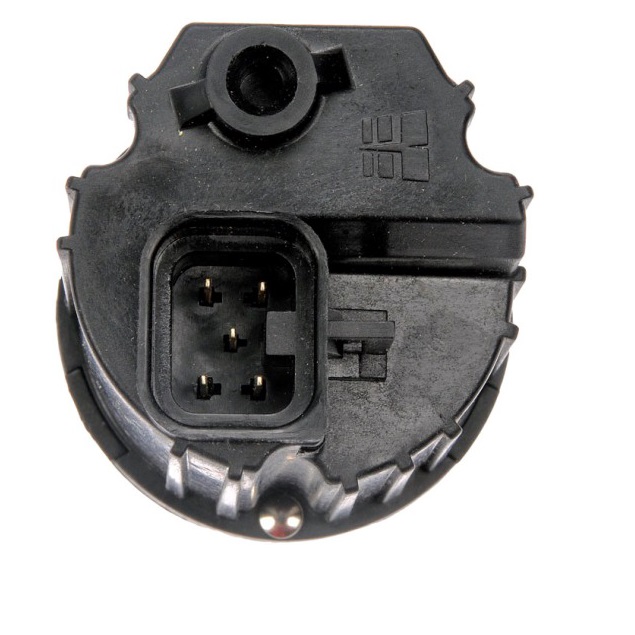

1430003
1997-2013 Chevy Suburban Front Axle Differential Actuator 109.95
The Electric
Actuator Is Used To Engage Front Axel Differential In And Out Of Four Wheel
Drive.
- Front Axle Mounted
- Works With Electronic Or Manual 4x4
- Durable Plastic Housing
- Direct Bolt On And Plug In
- Replaces Dealer Number 26060073
- Fits 1997, 98, 99, 00, 01, 02, 03, 04, 05, 06, 07, 208, 09,
10, 11, 12, 2013 Suburban
- Fits 1996 Chevrolet Suburban With Plastic
Case
- Replacement Suburban 4x4 Actuator Switch Built To OEM
Specifications
- 600-101
|

 |
600600
1992-1996 Suburban Front Axle Actuator Wiring Harness 49.95
- Only For Use w/Actuator 1430003 as Upgrade
- Wire (s) May Need To Be Spliced
- Correct 5 Pin Male Connector For Actuator 1430003
- Replaces Dealer Number 88959465
- Fits 1992, 1993, 1994, 1995, 1996 Suburban 1500 and 2500
- Fits 1996 Chevrolet Suburban With Metal
Case
- Install when replacing the thermal style axle actuator with
an electronic one
|

 |

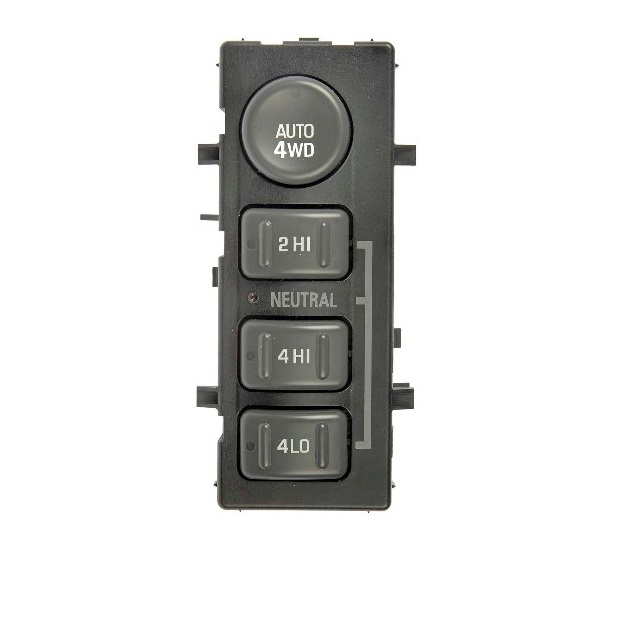

1430203

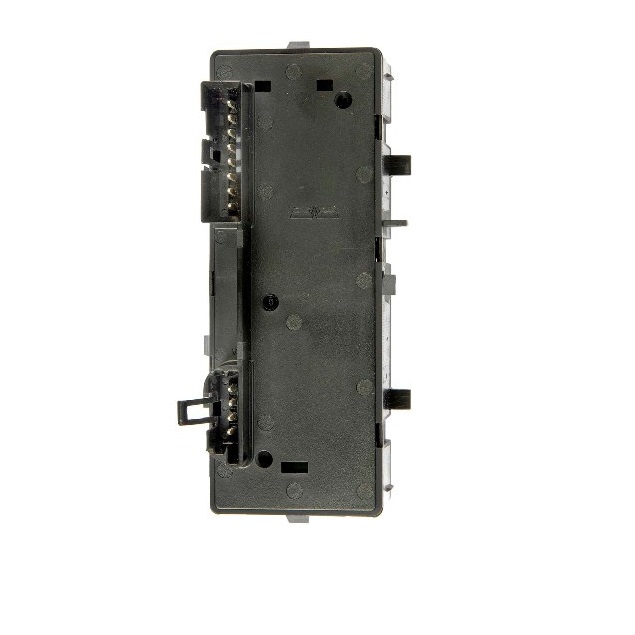

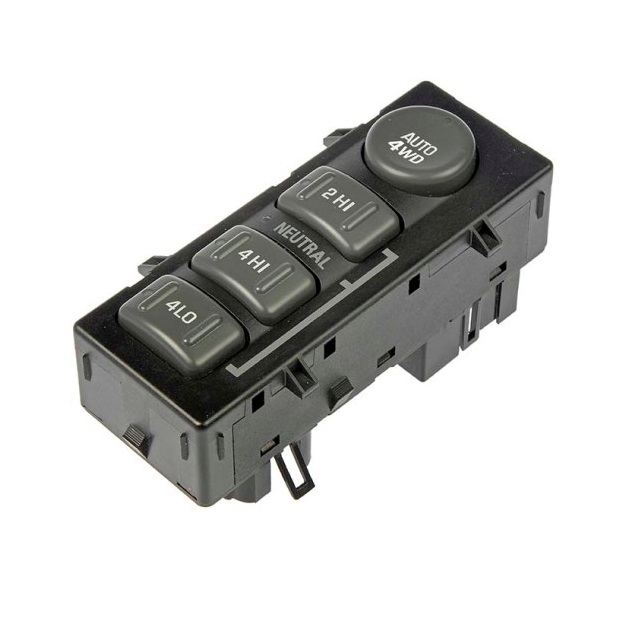

2000-2002 Suburban 4 Wheel Drive Dash Selector Switch 59.95
- Dash Mounted 4 Button (4HI, 4LO, 2HI & Auto
4WD) 4x4 Switch
- Suburban With Auto 4WD Only (NP8)
- Gray With White Printing
- Direct Bolt On And Plug In
- Fits 2000, 2001, 2002 Chevy Suburban 1500 and 2500 With Auto 4 Wheel Drive
- Dealer Reference 15709327 , 19168767
- New Replacement Suburban 4x4 Dash Switch Built To OEM
Specifications
- 901-062
|
  |
1420001
1998-2002 Suburban Transfer
Case Actuator W/Auto 4WD 189.95
The Electric
Actuator/Motor Is Used To Engage Transfer Case In And Out Of Four Wheel
Drive On Chevy Suburban Equipped With Auto 4x4.
- RPO "NP8" (white tag with option
codes in glove box) indicates auto electronic shift
- Automatic Electronic Shift (4 Wheel High,
Low And Auto)
- Works With 4 Button Dash Switch (4HI, 4LO, 2HI,
Auto, Neutral)
- Rectangular 6 Pin Plug Connector & Square 4 Pin Plug
- Direct Bolt On And Plug In
- Replaces Dealer Number 12474401
- All New Parts, Not Refurbished
- No Core Charge
- Fits 1998, 1999, 2000, 2001, 2002 Suburban 1500
and 2500 With Auto 4 Wheel Drive
- Replacement Chevy Suburban Transfer Case Actuator Built To OEM
Specifications
- Also Called Encoder Motor
- 600-901
|
  |
1420002
1996-1999 Chevy Suburban Transfer
Case Actuator Motor 144.95
The Electric
Actuator/Motor Is Used To Engage Transfer Case In And Out Of Four Wheel
Drive On Chevy Truck Equipped With Electronic Shift 4x4.
- RPO # "NP1" (white tag with option
codes in glove box) indicates electronic shift
- 2 Speed Electronic Shift (4 Wheel High And
Low)
- Works With Dash Mounted 3 Button Switch (4HI, 4LO, 2HI)
- Rectangular 2 Pin Plug Connector & Rectangular 6 Pin Plug Connector
- Direct Bolt On And Plug In
- Replaces Dealer Number 12386247 And 88996604
- All New Parts, Not Refurbished
- No Core Charge
- Fits 1996, 1997, 1998, 1999 Chevrolet
Suburban 2500
- Fits 1996, 97, 98, 1999 Chevrolet
Suburban 1500
- Does Not Fit "NP8" Automatic AWD 5 Button Switch (4HI, 4LO, 2HI,
Auto, Neutral)
- Also Called Encoder Motor
- 600-902
|
 |
1430011
1996*-1999 Chevy Suburban 4x4 Transfer Case Switch 37.95
- Mounted On Transfer Case
- 3 Pin Connector
- Works With Electronic Or Manual 4x4
- Direct Bolt On And Plug In
- Replaces Dealer Number 15693423
- *Switch Fits 1996 Suburban With 3 Wire Connector Switch
- Fits 1997, 98, 1999 Chevrolet
Suburban 1500
- Fits 1997, 98, 1999 Chevrolet
Suburban 2500
- New Replacement Suburban 4x4 Actuator Switch Built To OEM
Specifications
|
 |
1430014
1992-1996* Chevy Suburban 4WD Transfer Case Switch 27.95
- Mounted On Transfer Case
- 2 Pin Connector
- Works With Electronic Or Manual 4x4
- Direct Bolt On And Plug In
- Replaces Dealer Number 15582030
- *Switch Fits 1996 Suburban With 2 Wire Connector
- 4x4 Switch Fits 1992, 93, 94, 1995 Chevrolet
Suburban 1500
- 4x4 Switch Fits 1992, 93, 94, 1995 Chevrolet
Suburban 2500
- New Replacement Suburban 4x4 Actuator Switch Built To OEM
Specifications
|
 |
1430000
1992-1995 Suburban 4WD Front Axle Differential Actuator 89.95
- Actuator Is Used To Engage Front Axle In And Out Of 4X4
- Front Axle Mounted
- 2 Wire Connector (no longer available thru dealer)
- Works With Electronic Or Manual 4x4
- Direct Bolt On And Plug In
- Replaces Dealer Number 26013495
- Fits 1992, 93, 94, 1995
Suburban 1500 and 2500
- Fits 1996 Chevrolet Suburban With Two Wire
Connector (metal case)
- New Replacement Chevy Suburban 4x4 Actuator Built To OEM
Specifications
|
|
|
